RevoCell® Bay / Bow Windows
Energy-efficient, strong, and bright, our RevoCell® bay and bow windows provide a wider view outside, expand your indoor space, and can make your home really stand out in the neighbourhood.
Powered by
RevoCell®
Our bay and bow windows feature a solid microcellular PVC construction that offers the window extra strength and insulation. This technology allows manufacturing windows that are more energy-efficient, brighter, and stronger.
More Efficient.

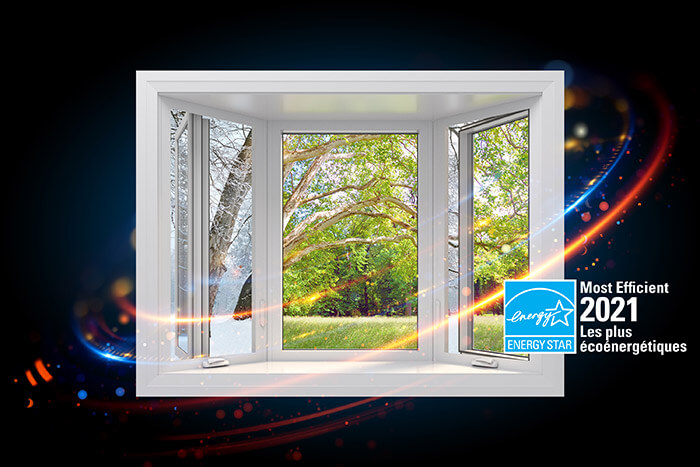

We build our windows for maximum indoor comfort, year-round. Our RevoCell® bay and bow windows, in casement operable style, have a top Energy Rating (ER) with both double and triple-pane configurations.
Energy Rating (ER)
Stronger.
Our RevoCell® window frames, sashes, mullions, and brickmoulds are solid inside, which makes then stronger than the hollow chambers used in regular PVC windows. All of our windows come standard with a 4.5” deep frame, 38% more than the industry standard of 3.25”. This makes them more rigid and help seal the wall opening better.
With casement profiles, our bay and bow windows achieve a whopping Performance Grade of 85, levels above the nearest competitors.
Brighter.

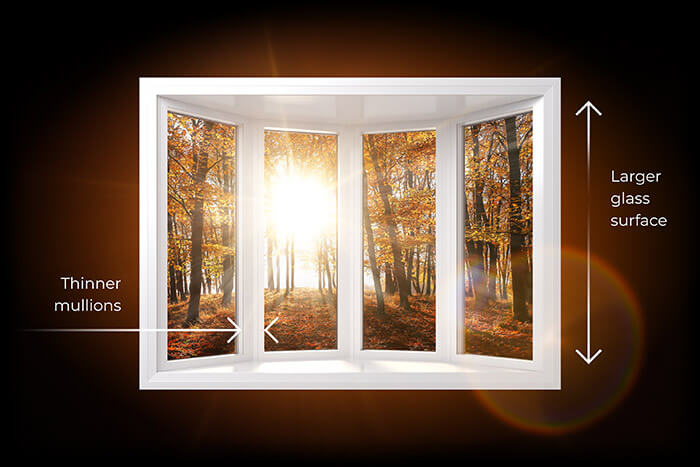

The extra strength of microcellular PVC allows manufacturing our windows windows with slimmer frames and sashes. This adds an extra 1.5” of glass in each dimension compared to ordinary PVC windows. this allows for slimmer mullions, which adds up to more glass on multi-paneled bow windows. With clearer glass, you get more natural light inside.
Isn’t that why you get windows in the first place?
Built to deliver
From energy efficiency, to durability and security, our RevoCell® windows have been designed to exceed the highest standards. Bay and bow windows are a made up of multiple windows, hence the overall performance of a modular assembly is rated to the lowest-performing component used. Here are the window types you can use in our bay and bow windows.
| Window Model | Air infiltration / exfiltration | Forced Entry Resistance | Performance Class | Performance Grade | U-factor Btu/ft²•hr•F° | Energy Rating (ER) | NRCan reference number |
|---|---|---|---|---|---|---|---|
| Awning, double-pane | A3 | F40 | LC | 85 | 0.26 | 38 | 35098310 |
| Awning, triple-pane | A3 | F40 | LC | 85 | 0.15 | 48 | 35098689 |
| Casement, double-pane | A3 | F40 | LC | 85 | 0.25 | 40 | 35098681 |
| Casement, triple-pane | A3 | F40 | LC | 85 | 0.15 | 48 | 35098665 |
| Fixed, double-pane | A3 | F40 | LC | 85 | 0.26 | 43 | 35098326 |
| Fixed, triple-pane | A3 | F40 | LC | 85 | 0.15 | 51 | 35098693 |
| Hung, double-pane | A3 | F10 | R | 40 | 0.27 | 40 | 37096718 |
| Hung, triple-pane | A3 | F10 | R | 40 | 0.17 | 48 | 37096726 |
| Slider, double-pane | A3 | F20 | R | 45 | 0.27 | 40 | 37096734 |
| Slider, triple-pane | A3 | F20 | R | 45 | 0.17 | 48 | 37096742 |
AAMA/ WDMA/CSA 101/I.S.2/A440-17, NAFS (North American Fenestration Standard) Specification for windows, doors, and skylights
Everything you really need in a window
Energy-efficient, durable, and bright, our RevoCell® bay and bow windows are built designed for the extremes of the Canadian climate. Here are some features that make them exceptional:
Modern exterior with understated slim profiles and up to 20% larger glass surface.
The solid-core microcellular PVC frame is 4.5”, deeper than the usual 3.25”, making a window that’s stronger and seals the rough opening better.
Our bay windows are available with double-pane or triple-pane glass and filled with 98% environmentally-friendly Argon gas.
Our super-clear low-iron glass allow more visible light through, while low-e coatings help reflect back heat.
Our insulated glass units use a top-performance cellular warm-edge spacer to minimize direct heat transfer.
We use triple continuous weatherstripping seals at the window frame and sash interface, for an airtight fit.
Our “One-Click” screens are the easiest to operate in the industry, making removal and installation a breeze while withstanding decades of use.
Bay and bow windows can have a seat in your choice of material. Plywood (left) can be painted, oak (right) can be stained, and formica (centre) provides a ready finish.
The angled bay mullions are filled with polyurethane foam for superior insulation.
Bay and Bow Window Gallery
Take a look at this gallery to see what our Bay and Bow windows can look like installed in a home.
Custom Is The New Norm
Gone are the days when window companies dictated what your home should look like. Every single window we build is as unique as you want it. From factory finishes to custom paint, decorative grilles or simulated divided lites, textured or tinted glass, the combinations available are virtually endless.
Add some colour
Most homeowners get their replacement windows in stock white, which is a great all-around colour. But you don’t have to: our comprehensive palette of exterior factory finishes will match any home style and help elevate its look.
Standard colours
Our windows’ interior colour is white, but exterior colours are also available in several affordable factory finishes. Our standard colours are engineered in cap stock (coloured PVC) for lighter tones and durable, architectural-grade laminate for the darker tones. They are extremely colourfast and and more durable than paint. We also offer a full-black (exterior and exterior) on select windows. Please contact us to inquire about the availability of custom-painted colours.
Grilles Patterns and Styles
In the old days, large panes of glass could not be manufactured cost-efficiently, so windows were filled with many smaller pieces of glass held in the sash by bars called muntins. These divided lite looks have become a sought-after architectural element, especially on traditional home styles. Take advantage of our window customization expertise to elevate the look of your new windows.
Internal grilles are installed between the panes of glass, inside the the insulated glass unit. This allows for the easiest window cleaning. Our internal grilles are available in a variety of profiles, sizes, and finishes.
Simulated divided lites (SDL) are external grilles. They are applied on the exterior of the insulated glass unit and give a more realistic muntin appearance. Like internal grilles, our SDL’s are available in multiple profiles and finishes.
Grille Patterns
We offer a variety of patterns for window grilles. Here are a few of the most popular ones. You can mix and match internal and external grilles to get the exact style your require.
Rectangular
This classic divided-lite look offers a traditional Old-World aesthetic. Works equally well on traditional and newer homes, adding a timeless elegance.
Partial Covering
Our grilles can be aplied to a portion of the window only. Combined with an SDL profile, you can also reproduce a hung sash appearance on a casement window.
Contour
Contour grilles go around the perimeter of the sash. Often associated with the Prairie School style, they add a artsy touch that’s distinctively North American.
Diamond Pattern
The diamond pattern can add an artistic touch to a traditional home. The understated charm of thin grilles adds extra interest from up close.
Divided Lites
Our grilles can be aplied to a portion of the window only. Combined with an SDL profile, you can also reproduce a hung sash appearance on a casement window.
Specialty Glass
We also offer some alternatives to clear glass in your windows. Tinted glass can be used to lower light levels, or to alter the colour balance indoors. Textured glass adds a degree of privacy as well as decorative interest, while letting natural light inside.
Grey Glass
Bronze Glass
Frosted Glass
Glue Chip Glas
Future-proof Your Investment in Replacement Windows
Get top performance, great looks, and a 25-year warranty — all at a competitive price. Our quotes are no-pressure, no-obligation, and FREE.
