RevoCell® Casement Windows
Incredibly energy-efficient, strong, and bright, our RevoCell® casement windows allow for maximum ventilation when open, while ensuring an airtight fit and top-rated security when locked.
Powered by RevoCell®
Our casement windows feature a solid microcellular PVC construction that offers the window extra strength and insulation. This technology allows manufacturing windows that are more energy-efficient, brighter, and stronger.
Available in Triple-Pane!
More Efficient.
We build our windows for maximum indoor comfort, year-round. Our RevoCell casement windows lead national charts with the highest Energy Rating (ER) with both double and triple-pane glass – in standard configuration!
Energy Rating (ER)
Stronger.
Our window frames, sashes, mullions, and brickmoulds are solid inside, which makes then stronger than the typical hollow chambers used in PVC replacement windows. All of our windows come standard with a 4.5” deep frame, 38% more than the industry standard of 3.25”. This makes them more rigid and help seal the wall opening better.
As a result, our casement windows achieve a whopping Performance Grade of 85, levels above the nearest competitors.

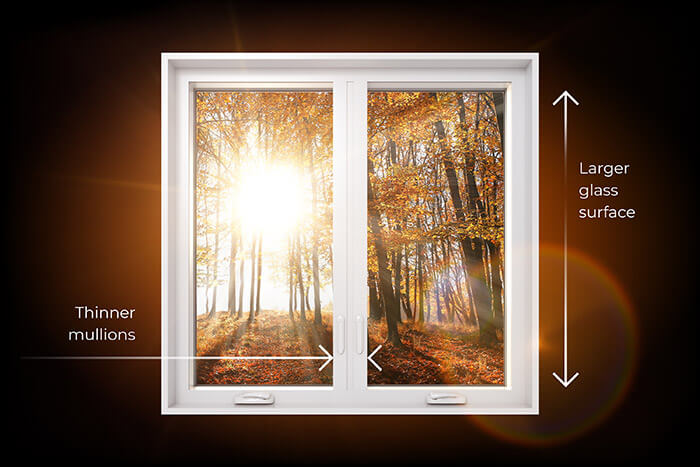

Brighter.
The extra strength of microcellular PVC allows manufacturing our casement windows with slimmer frames and sashes. This adds an extra 1.5” of glass in each dimension compared to ordinary PVC windows. Our internal mullions are only 4.5” wide, as opposed to the usual 6-7”. And our glass is clearer. As a result, you get more glass, and more natural light inside your home.
Isn’t that why you get windows in the first place?
Energy Efficient Casement Windows
The manufacturing process of all Energy Star® certified casement windows installed by Nordik Windows and Doors are audited by an independent accredited certification body and approved by Natural Resources Canada. Our windows and doors carry the Energy Star® label showing their rating.
All of our RevoCell® mPVC windows meet and exceed the latest Energy Star designation criteria in Canada.
Casement Window Ratings
Here are the ratings on standard RevoCell® Casement windows, to CAN/CSA-A440.00 and NAFS-11 standards:
| Layers of glazing | 2 (dual pane) | 3 (triple pane) |
|---|---|---|
| Air resistance | A3 | A3 |
| Water resistance | B7 | B7 |
| Wind resistance | C5 | C5 |
| Resistance to forced entry | F-40 | F-40 |
| Performance grade | 85 | 85 |
| Performance class | LC | LC |
| Max size tested | 34” x 81” | 34” x 81” |
| U-value (imperial) | 0.25 | 0.15 |
| Energy Rating (ER) | 40 | 48 |
| NRCan reference # | NR6681-35098681-ES5 | NR6681-35098665-ES5 |
| ENERGY STAR rated | 2021 Most Efficient | 2021 Most Efficient |
RevoCell® Window Colours
Most homeowners get their replacement windows in stock white, which is a great all-around colour. But you don’t have to: we offer a comprehensive selection of durable factory finishes on RevoCell® windows, to suit any home style. And if these don’t work for you, custom paint is always an option.
Casement Window Features
Convenient, easy-to-clean, durable, and energy-efficient, our RevoCell® Casement Windows have been specifically designed to withstand the Canadian climate extremes.
Microcellular PVC construction
Our RevoCell® casement window frames, brickmoulds, and sashes are insulated with billions of closed microscopic cells for superior energy efficiency. They are fusion-welded as a single unit, preventing the air from moving between the window parts.
Contemporary design
Our RevoCell® casement windows feature a minimalist, slim profile that goes equally well with traditional and contemporary home designs.

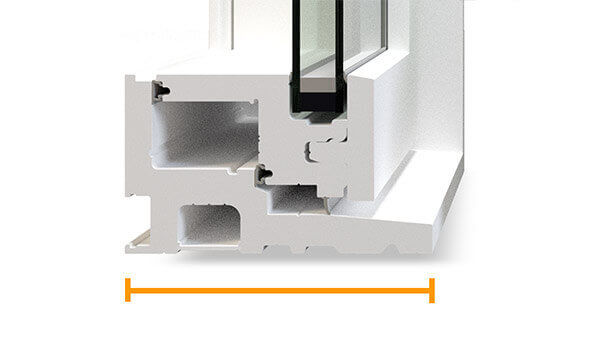

4-1/2” fusion-welded frame
Our windows come standard on a 4-1/2” deep frame, which is stronger and more durable than the standard 3-1/4” sold elsewhere. The deeper frames give extra dimensional stability and strength. It also allows for a lower sash profiles to maximize the glass surface.

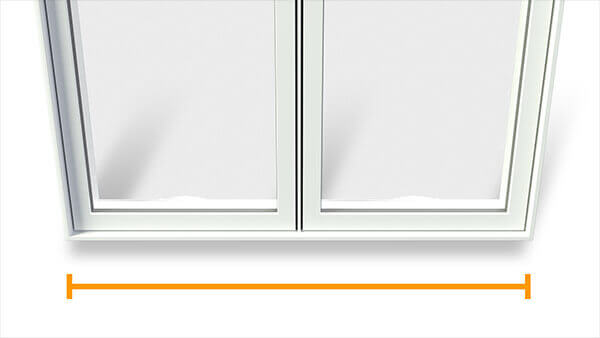

Structural construction
Our RevoCell® multi-lite casement windows feature structurally strong, seamless one-piece frames with integrated cross-mullions. It allows for more natural light to enter the interior, and offers better protection against drafts and water infiltration.
Dual and triple-pane insulated glass units
Two or more layers of glass are joined to create a sealed hollow chamber that acts as a thermal buffer. This minimizes direct heat transfer through glass, and helps prevent condensation and ice build-up. It also helps soundproof the interior, in conjunction with a high-quality cellular spacer.
Low-emissivity coated glass
An invisibly thin metallic coating is baked onto one or more of the glass pane surfaces, reflecting most of the heat in the form of infrared radiation back inside the home during winter and outside during summer, while letting most visible light pass through.
Argon gas filling
The air between the glass panes inside a thermal glass unit is replaced with argon. This inert, odourless gas is heavier than air, reducing convection between the panes and the associated heat loss through the insulated thermal glass unit. It also offsets water vapour to prevent condensation between the panes.
Ener-Edge® warm-edge spacer
Our thermal glass units use a cellular silicone warm-edge spacer with low thermal conductivity, minimizing heat transfer between the interior and the exterior. It also allows for the natural expansion and compression due to temperature changes without failing the seal between them.
Triple weatherstripping
Window sashes use three distinct continuous seals at the interface with the stationary frame and mullions. This stops drafts and the associated heat leaks through the casement window. The thermal glass unit is also sealed to the sash from both the inside and the outside.
PVC-cladded interior wood extension
Our casement windows accomodate a very securely fit interior wood extension cladded with a thick layer of no-maintenance PVC. It allows for the easy installation of blinds or other window treatments, and results in greater window strength and durability.

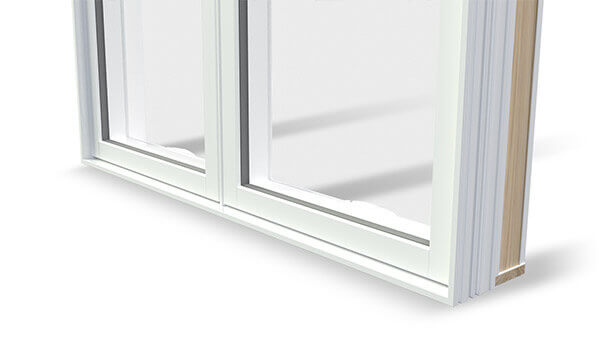

High-gloss finish
We use the highest grade PVC powder and fabrication techniques which result in a high gloss PVC finish. As a result, our windows are easier to clean, more durable, and won’t fade or yellow over time.
Integrated brickmould (optional)
A brickmould that is part of the window frame creates a superior window assembly that continues the insulation outside, also adding to the casement window strength. It doesn’t require capping – this means less chance of water and air leakage.

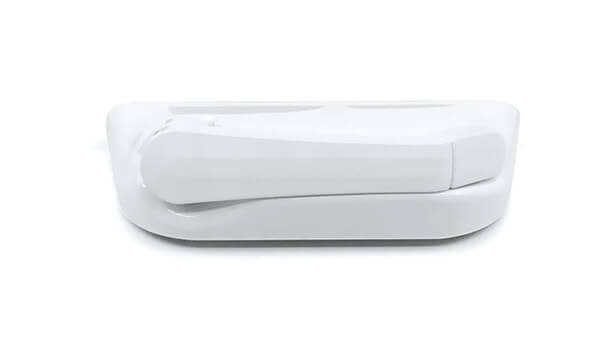

Low-profile nesting crank handle
The unique cover and handle design of our crank handle will differentiate your window from the rest. The full-flip folding handle recesses in the operator cover, giving your casement window a smooth, contemporary look, and minimizing interference with curtains and blinds.
NOVA® multi-point lock
The NOVA® Multi-point locking system is the most advanced and adaptable solution on the market. With a removable handle and cover, it offers optimized security, immense flexibilty, and effortless operation.
Dual-arm operator for sashes over 22”
Any sash over 22” wide comes with a heavy-duty, dual-arm operator. It provides maximum performance to open and close larger windows - with 33% less effort than other operators of its kind.
“One-Click”, easy-to-remove screen
Our smooth-edge, easy-to-remove “One-Click” screens are the easiest screens to operate in the industry. With their durable yet elegant aluminium finish, these screens won’t warp or break down over time like some of the competition.
Durable standard colours
Our RevoCell® casement windows come in several standard colours that are engineered during the profile extrusion. Lighter tones are made with cap stock, meaning a layer of tinted PVC covering all exterior-facing surfaces. The darker tones are architectural-grade laminates that are UV reflective and extremely colourfast. Our standard colours are extremely UV and weather-resistant, and won’t peel, flake, or scratch like paint finishes.
Add an Extra Touch with Grilles
Take advantage of our customization expertise to get a personalized window solution that gives your home a unique and distinctive look. The internal grilles allow for easy cleaning, while the external grilles simulate traditional divided lites. Any of our grille configurations can be combined with any grille type to get the exact look you desire.
Grille Configurations
Find the grille configuration that makes your windows yours.
Contour
Contour Grilles add a beautiful Prairie-style look to your window, reminiscent of the style emerging in late 19th - early 20th century North American homes.
Diamond Pattern
Diamond Patterned Grilles are an ornate window grille style that reminisces the Old-World style of Tudor Revival style mansions of the past.
Partial Covering
Partial Grilles are a style coming back to modern homes, inspired by Craftsman style home aesthetic, where only a portion of the window is covered.
Rectangular
A timeless grille pattern commonly found in colonial homes, particularly Georgian style, as well as in those built in the 1970's and later.
Grille Types
A wide assortment of grille shapes and materials are offered to you to allow you to find the perfect match to your home.
Slimline, 5/16"
Georgian, 5/8"
Rectangular, 5/8"
Treat the Window with a Glass Finish of your choice
Textured or coloured glass ensures privacy while allowing light to penetrate into bathrooms and other rooms requiring privacy. Coloured glass can also be used to complement the design of your home.
Clear
Bronze Tint
Grey Tint
Frosted
Glue Chip
